+ Maximum temperature: 1.000ºC
+ Maximum pressure: >500 bar
+ Incomparable elastic recovery
SWG Carrier Ring design results in a resilient high performance semi-metallic gasket, using proven Spiral Wound Gasket technology.

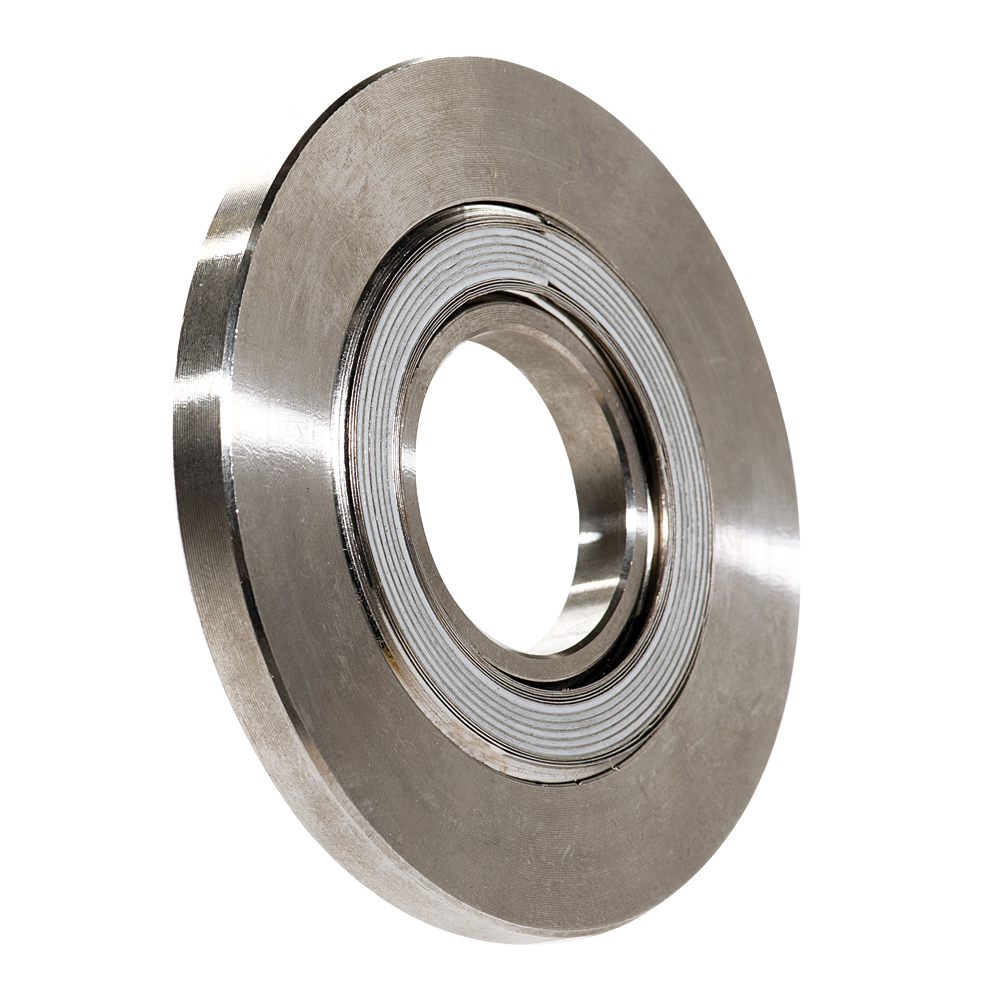

The SWG Carrier Ring gasket design consists of a spiral wound gasket (SWG) sealing elements inserted into matching recesses located on each face of a solid metal ring (also known as the carrier ring). The major benefits of the SWG Carrier Ring design are:
• High recovery characteristics of the double SWG elements
• Increased strength and resistance to high blow-out forces.
• Easy to handle, reducing risk of damage during handling.
• High integrity (Low Emission) sealing using proven SWG sealing technology.
• Re-usable Carrier Ring with replacement sealing elements.
• Resilient to fluctuating temperatures and pressures.
• Wide material selection available.
