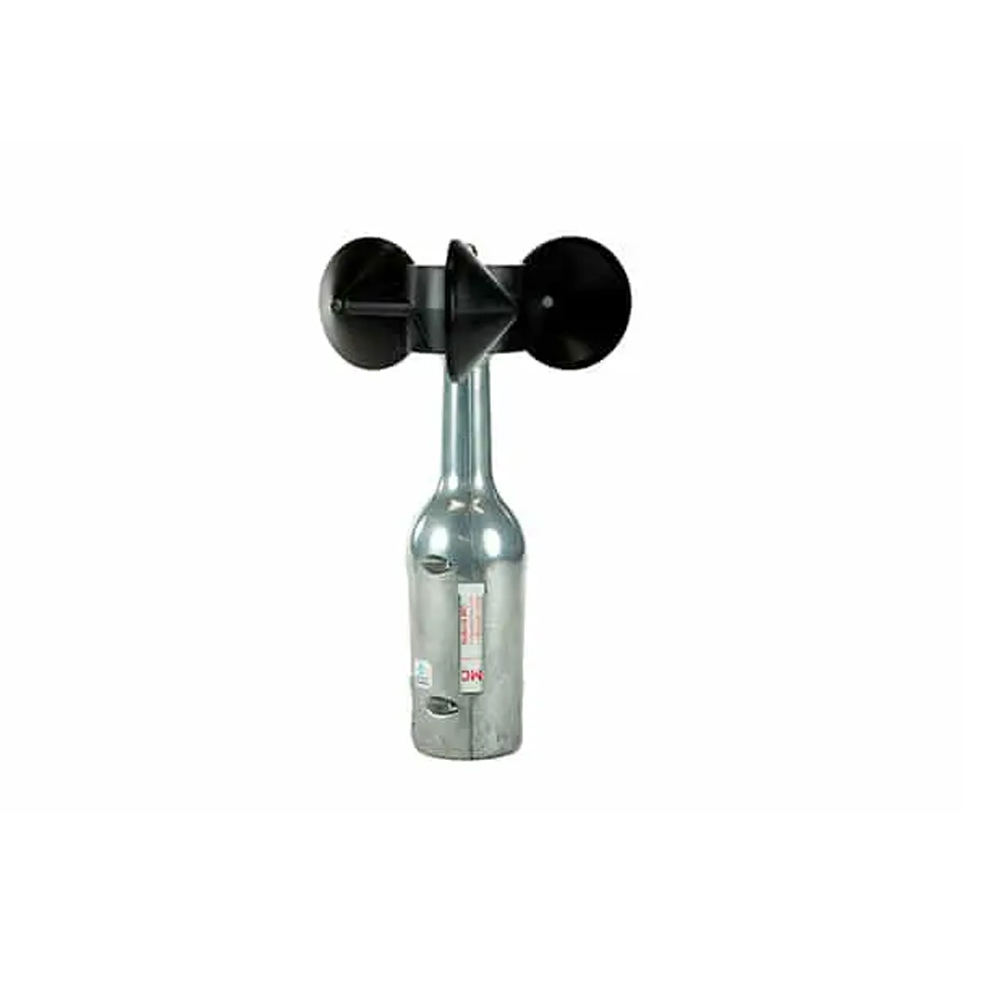

- Hybrid MC Anemometer
Available in two different versions, provide reliably measure wind speed for turbine control in moderate climates.
Benefits include:
Reliability
• Two-stage contamination protection extends sensor life
• Fully sealed sensor body minimizes dust, dirt, and water ingress
• Sealed cartridge bearing system prevents contamination from affecting the bearings
• Shock-resistant bearing mounting prevents damage caused by rough handling
• Rugged metal head prevents breakage due to accidental drops or icing
• Recommended maintenance interval of 10 years eliminates unwanted trips to your turbines
Aerodynamic Performance
• Threshold of <1.3 m/s
• Accuracy: +/- (0.3 m/s + 2% of measured value)
DOS VERSIONES
Hybrid XT Anemometer Push-Pull Output
Señal de salida Push-Pull, compatible con entradas NPN o PNP.
Velocidad del viento (m/s) = 0,509 m/s * Hz + 0,4 m/s
La amplitud de salida es igual a la tensión de alimentación.
Compatibilidad: Cualquier aerogenerador que acepte señales de entrada de onda cuadrada.
Referencia: 9380
Hybrid MC Anemometer 4-20mA Output
Señal de salida de bucle de corriente de 4-20 mA, alimentada por el sensor.
Resistencia de carga recomendada 50Ω a 1000Ω (dependiendo de la fuente de alimentación).
Rango de medida: 0-50 m/s (4-20 mA)
Compatibilidad: Aerogeneradores que acepten entradas de bucle de corriente de 4-20 mA.
Referencia: 9379
