Lectrodryer has solved the problems associated with outmoded generator hydrogen dryers with the BAC-50 continuous operating automatic twin tower dryer.
Whether you’re operating or offline, drying remains constant. The regeneration chore is eliminated. The Lectrodryer BAC- 50 does it all for you, automatically and without operator involvement. The BAC-50 takes the risk out of moisture control and guards against damage causing moisture which can lead to costly repairs, down time, and losses in efficiency.
Lectrodryer dual tower hydrogen dryer utilizes the latest technology. Unlike single tower dryers, BAC-50’s advanced design offers greatly improved generator protection by continuous drying of the gas.
El BAC-50 permite la monitorización continua del volumen de agua extraído del generador. El BAC-50 Lectrodryer genera simultáneamente un flujo de adsorción y un flujo de reactivación. El flujo puede continuar a través del generador y el secador aunque la turbina esté girando.

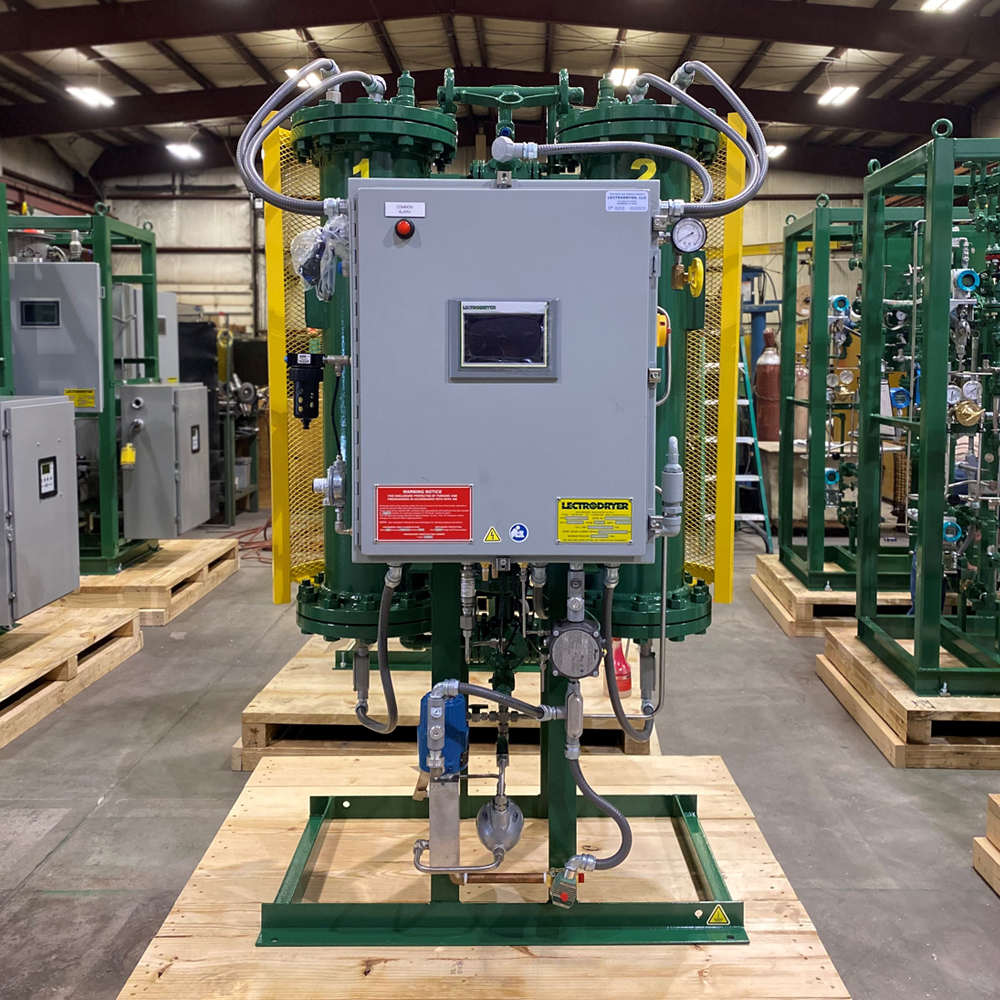

The BAC-50 Lectrodryer is an automatic dual tower unit for the continuous drying of hydrogen gas used in cooling turbine generators. The BAC-50 is used worldwide and can meet all known specifications including ASME, PED/ATEX and IECEx with certified components (IECEx certified assembly available as an option upon request). The BAC-50 is heat reactivated with high efficiency embedded electric heaters, and overtemperature protection. It can operate from seven standard voltages, and has NEMA 4 purged electrical enclosures to meet Hazardous Area Classification Cl 1, Div 2, Gr B or II3G, IIC, T4 for Zone 2.
The BAC-50 allows the continuous monitoring of the volume of water removed from the generator. The BAC-50 Lectrodryer generates an adsorption flow and a reactivation flow simultaneously. Flow can be continued through the generator and dryer even though the turbine may be on turning gear.
The BAC-50 Lectrodryer features ASME or PED carbon steel pressure vessels with embedded electric heater and flow booster in each adsorber vessel, initial charge of desiccant, two interlocked 4-way non-lubricated plug valves with double acting actuator, solenoid valve controls, 110 volt controls with control transformer, PLC, heater contactors, on-off switch, and a touch-screen operator interface for information on dryer status, sequence activity, alarms and maintenance information.
